Rotary & Tilting Table (Direct Drive)

  1. Work Holding Systems
  2. Rotary Tilting Tables
  3. Rotary & Tilting Table (Direct Drive)
nc-rotary-table-dd
Download Brochure
Get a Quote

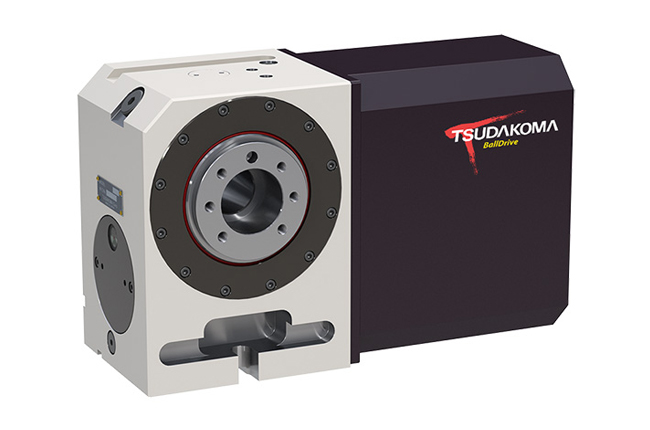

Developed for multi tasking machines which performs various machining in one succession.
Adopted BallDrive on the tilt axis to realize compacification. Automation is available by carrying rotary joint.

Features

3P rotary joint

Adopted high-speed direct drive motor on the rotary axis. (Max: 300min-1)

Mountable on #30 M/C

Adopted BallDrive on the tilt axis to aim at compacification

Multi tasking

The most suitable for multi tasking machines

Specifications

face-driver-adjustable-pins-gear-cutting
Specifications Unit RTT-126,AA
Rotary axis Tilting axis
Spindle diameter mm ø90
Net weight kg 250
Speed reduction ratio   1/1 1/60
Table max. rpm min-1 3000 12.5
(Motor rpm：750min-1)
Clamp system   pneumatic pneumatic
Clamp torque /pneumatic pressure 0.49MPa N・m 400 500
Allowable work weight kg 30
