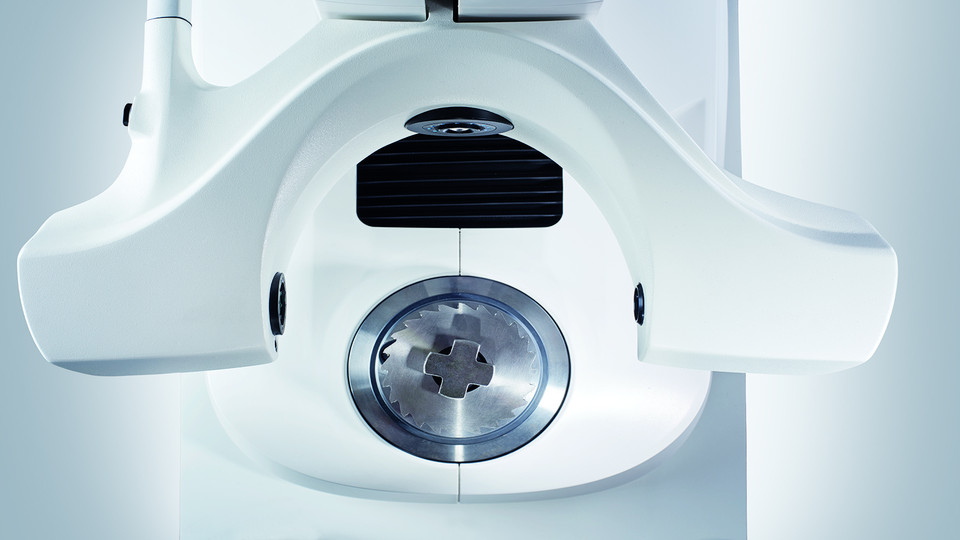

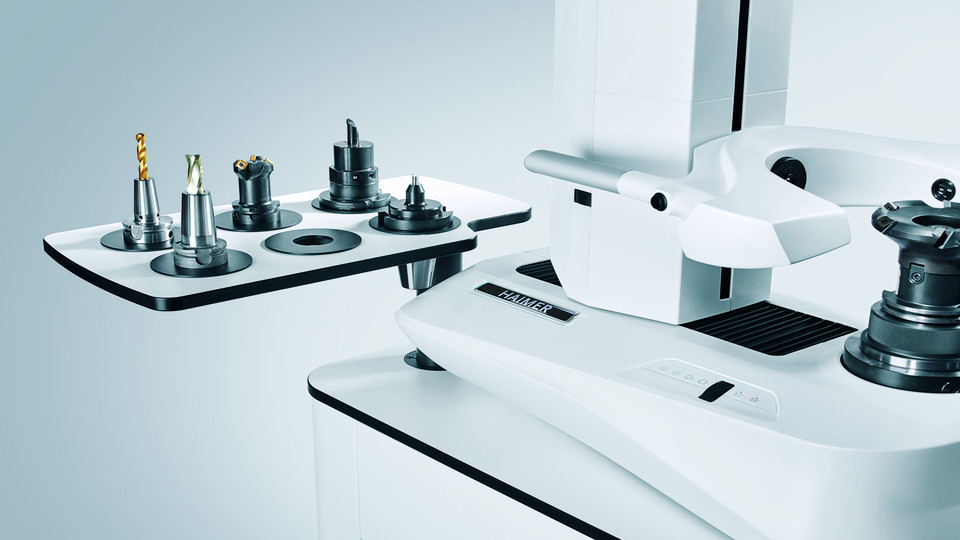

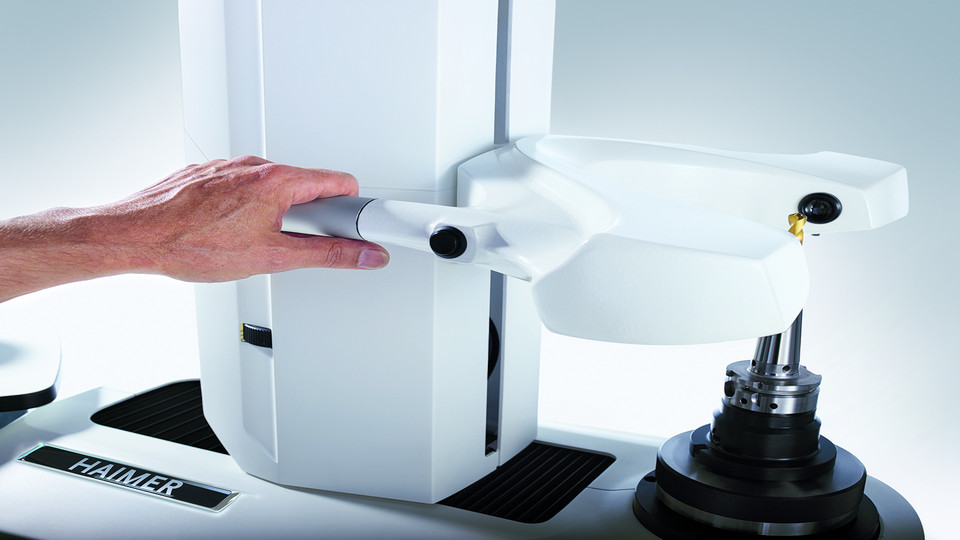

UNO series
unique high-tech features in entry level tool presetters
In addition to precision, speed and reliability, the UNO series also includes numerous features in terms of its equipment. The new design and improved ergonomics set new standards. High quality components are used, e.g. from SMC, Bosch, Heidenhain, IDS.
The autofocus and automatic drive models of the UNO series provide decisive advantages for tool measurement at the highest level. Choose your presetter – to meet your requirements.

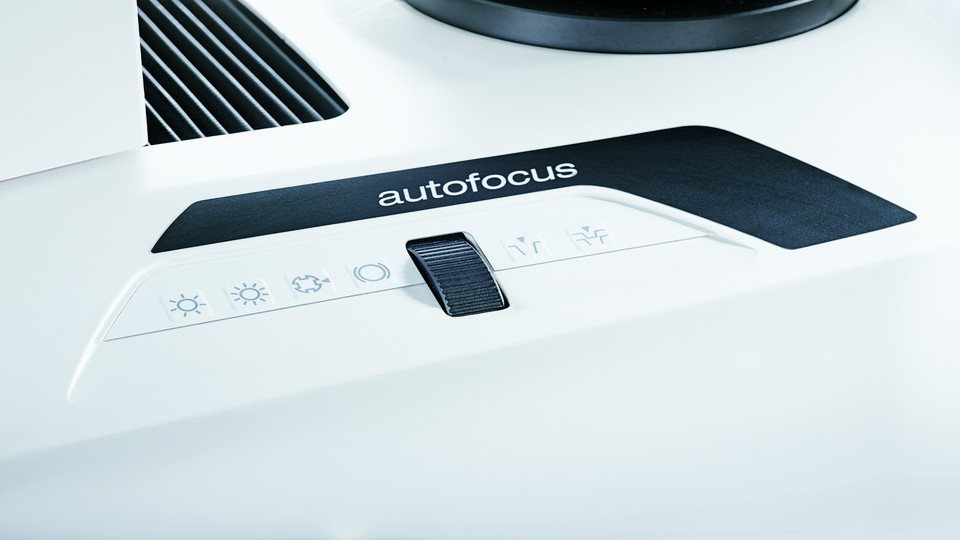

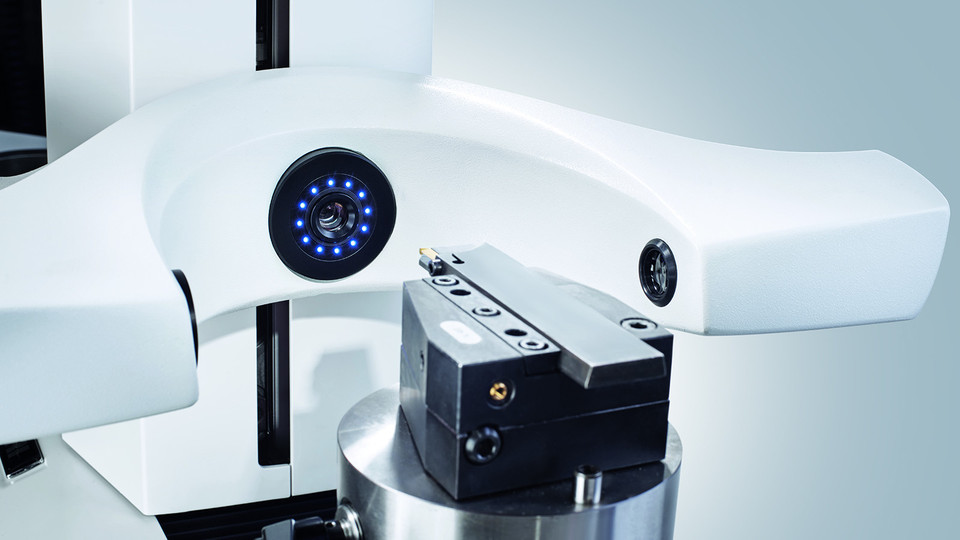

Autofocus

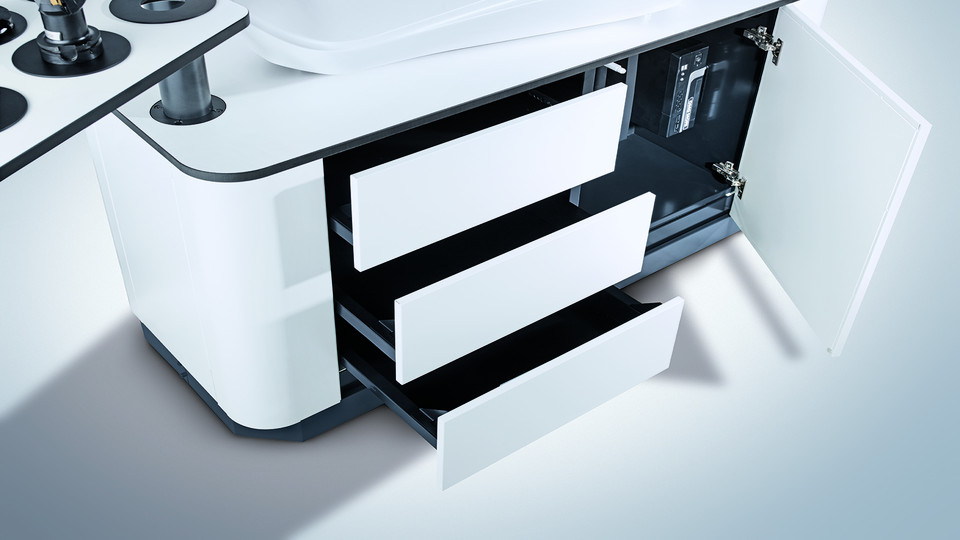

For automatically focusing the cutting edge. Motor-driven spindles. With useful system cabinet and 22" touch display as standard.
Automatic drive
For fully automatic tool presetting and measurement independent of the operator (CNC-controlled, 3 axes). With useful system cabinet and 22" touch display as standard.

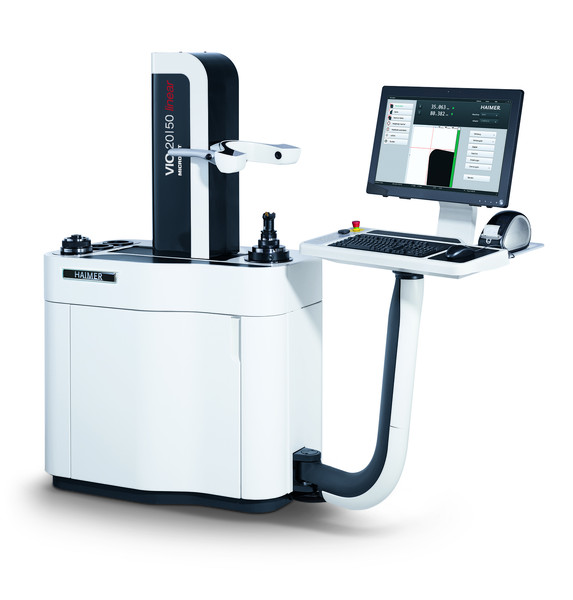

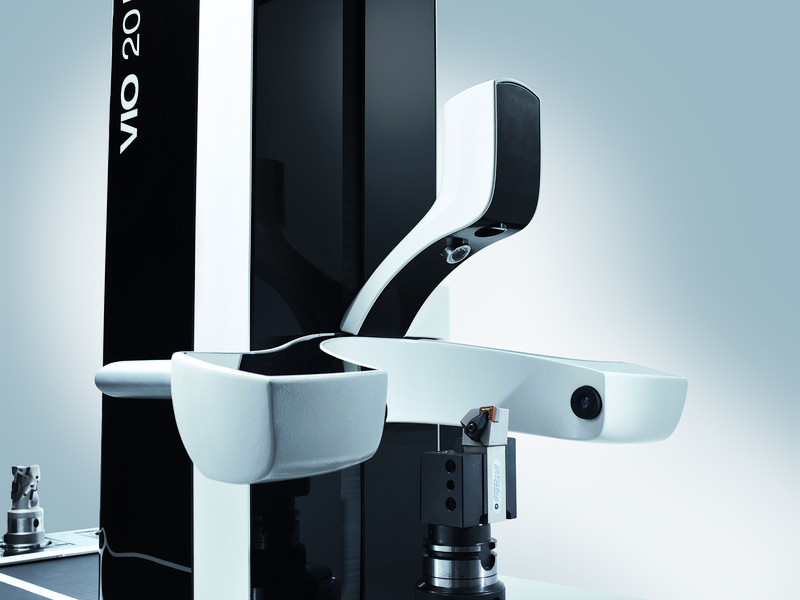

VIO series
maximum convenience and functionality
Optimise process reliability in your production with fully automatic measurement processes. The holistic device concept allows for integration in all production processes, including existing ones.
Maximum stability and precision

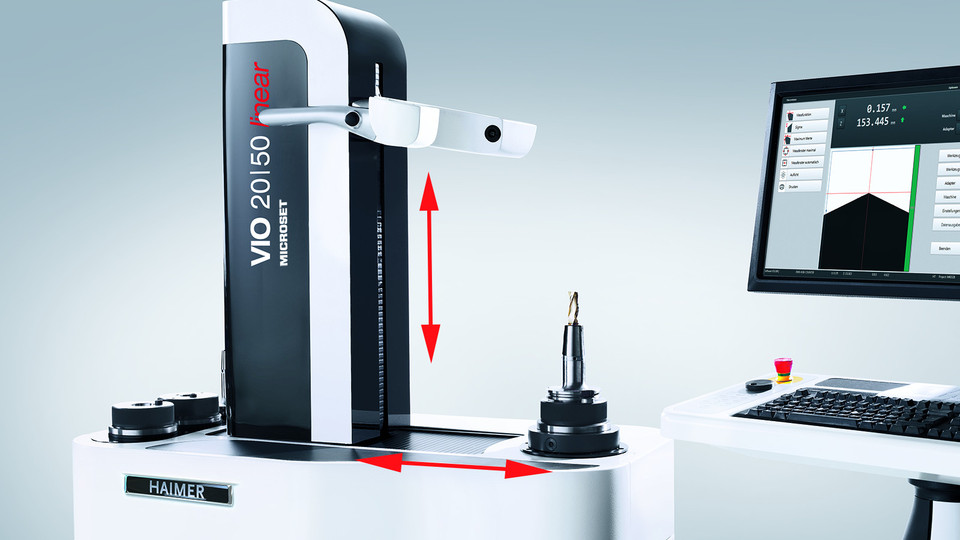

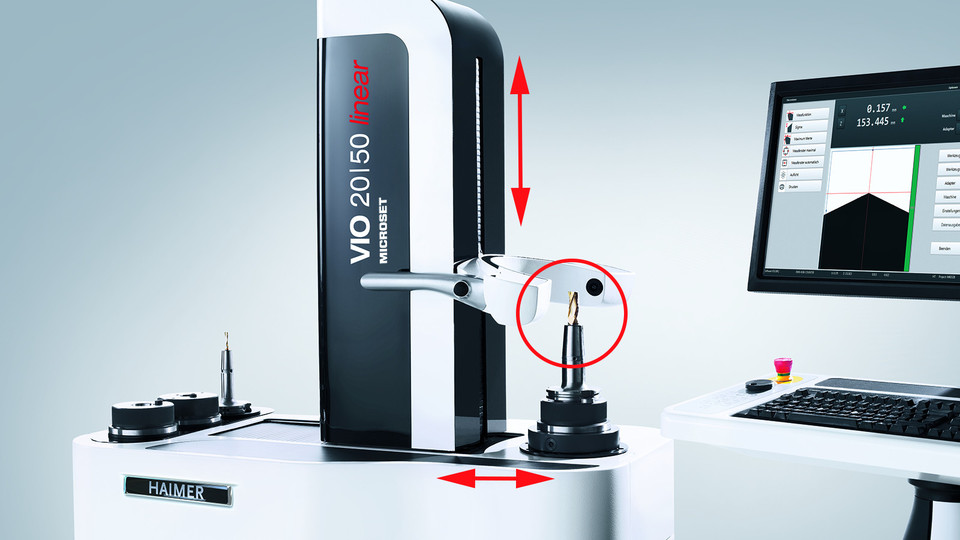

The FEM-optimised, thermally stable cast iron construction of the VIO linear series ensures accurate measuring results and equipment longevity. In addition, highly dynamic, wear-free linear drives ensure accurate long-term quality. The parallel drive and guidance system ensures optimal distribution of forces and guarantees measurement repeatability of ±2 μm.
- Low distortion even under the maximum permissible load thanks to its high rigidity
- FEM-optimised and thermally stable cast iron construction
- Maximum tool weight 160 kg
- Fast, silent and high accurate cutting edge approach by unique linear drive
Worldwide leaders through:- Fully automatic measuring cycles for maximum operating convenience
- High quality components from Heidenhain, Bosch Rexroth
- Linear drives for speed and highly accurate positioning
- Operating panel flexible and user-friendly
- High power software Microvision VIO
Tool Presetting - Accessories
Adapters and spindles for all requirements
High-quality and precise adapters and spindles are important elements for precise tool presetting.
Especially the ISS-U universal ultra-high precision spindle enables high precision direct clamping without adapters at highest clamping force and runout accurancy < 0,002 mm.
We have an extraordinary wide range in order that you can generate the results you want quickly and easily. We will gladly provide consultation regarding your individual requirements and applications.

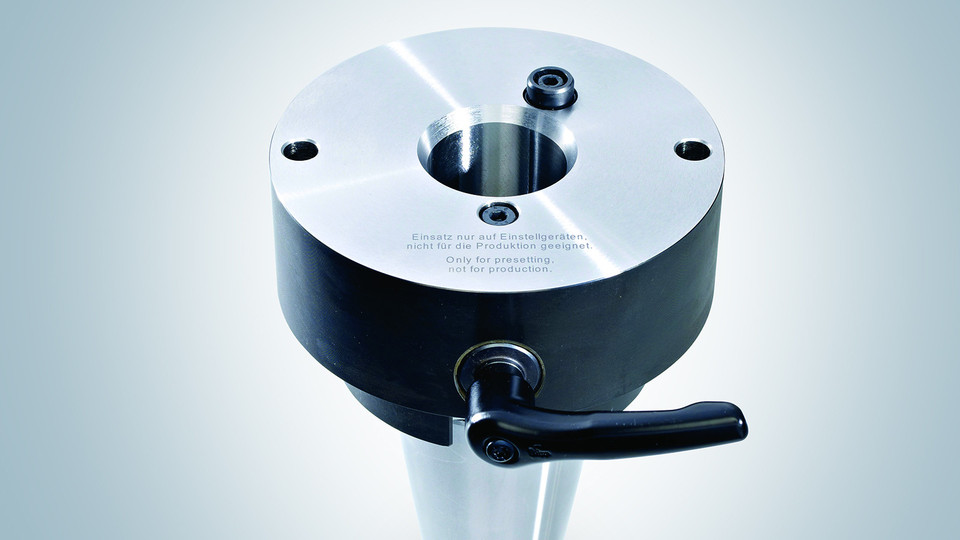

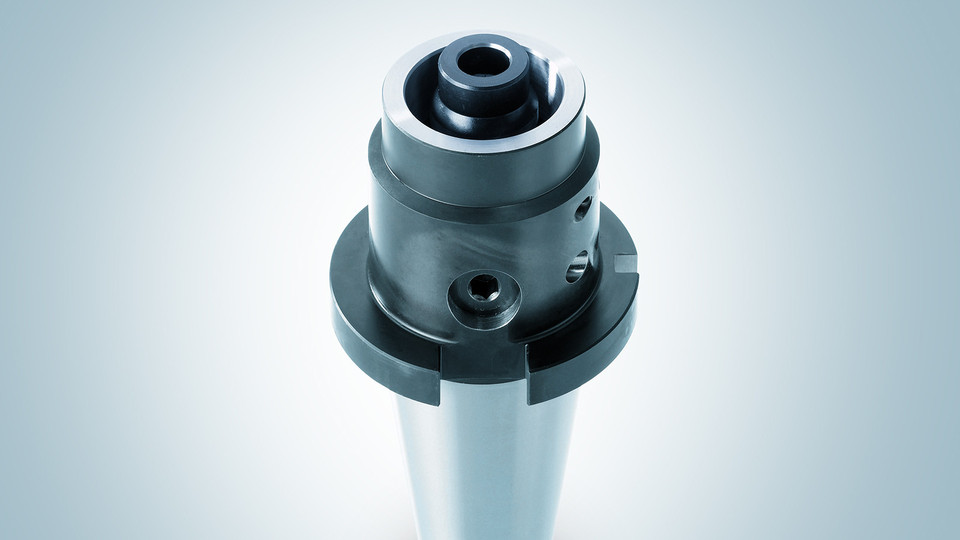

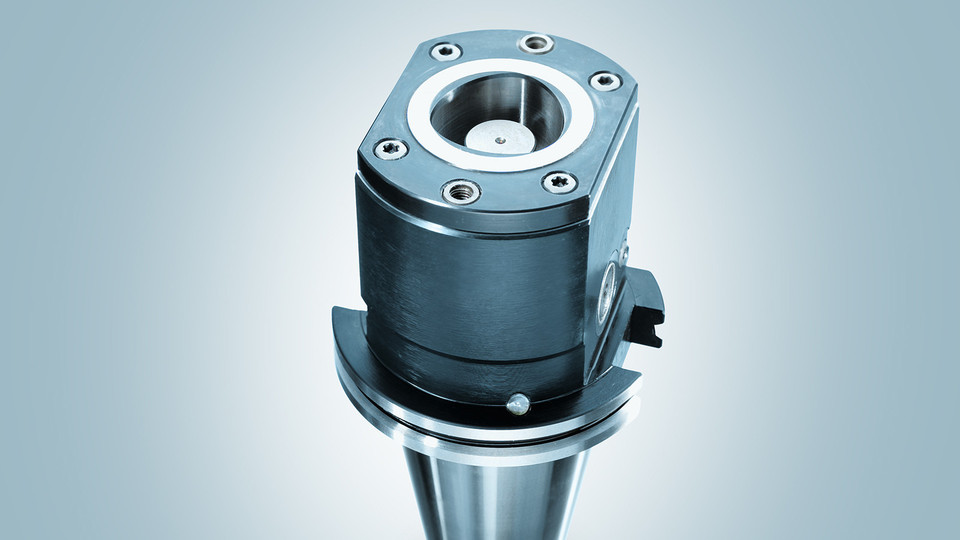

Examples of Adapters
We offer solutions for every situation, from a standard tool holder to customer-specific special tool holders. You benefit from our many years of experience of tool design.

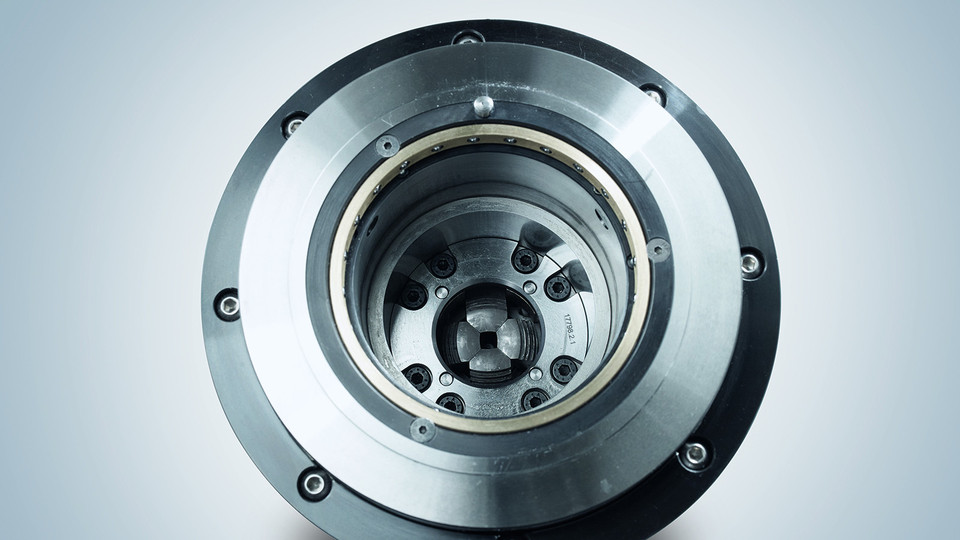

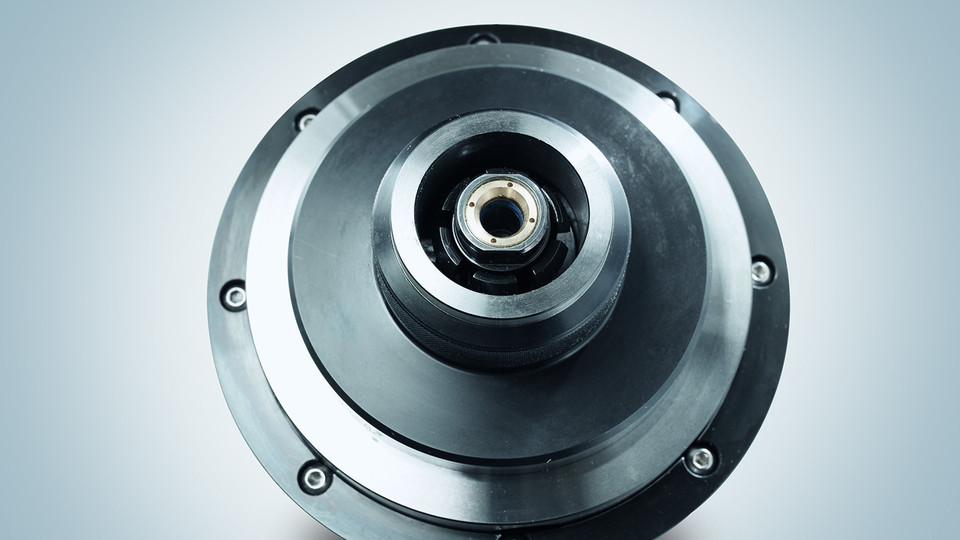

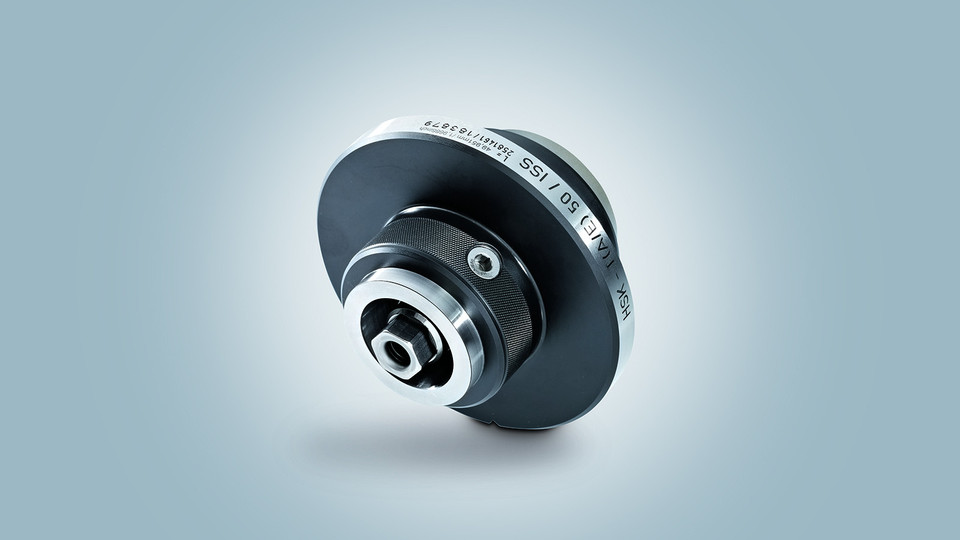

Examples of spindles
Our offer: Universal clamping system, which clamps the tools precisely and reliably independent of the tool holders geometry. Also attachment holder for all common tool holder systems on the market.
