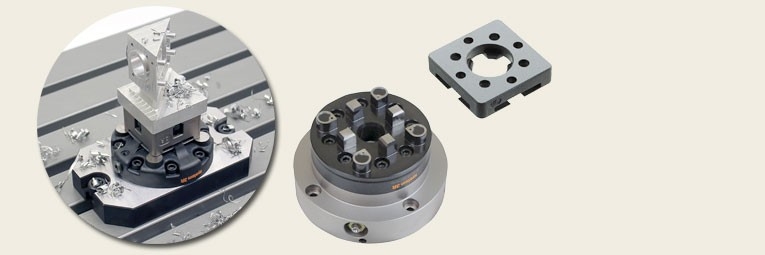

MacroStd & MacroHP
… reduces setting-up times.
… ensures precision and quality.
… has automatic air-blast cleaning of the references in the pneumatic chucks.
… has higher locking force in the pneumatic chucks – turbo locking.
… has references of cemented carbide or hardened ground steel.
… is suitable for automatic changing with System 3R’s automation program.

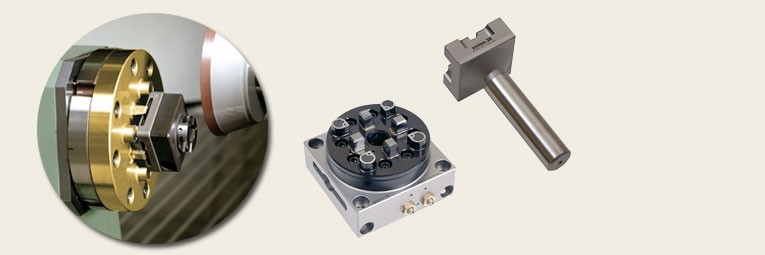

MacroNano
… Extremely high accuracy.
… High-precision machines are linked together in the production chain, without detracting from the extreme accuracy.
… Feedback to the machine for supplementary machining after inspection is possible. This feedback is only meaningful if the pallet system is at least as accurate as the measuring machine. MacroNano system is best described in two words as precise and quick!

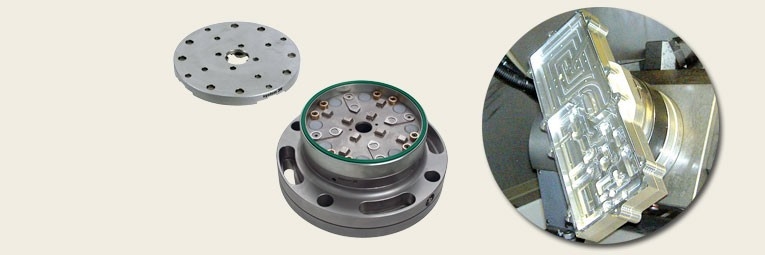

MacroMagnum
… allows mounting of both MacroMagnum and Macro palletts
… reduces setting-up times
… ensures precision and quality
… can handle high machining forces
… is suitable for automatic changing with System 3R’s automation program.
The extensive range of Macro pallets can also be fixed to MacroMagnum.

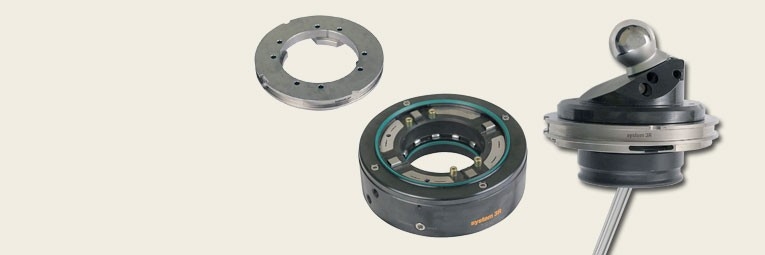

Matrix & MatrixNano
… reduces setting-up times
… ensures precision and quality
… has automatic air-blast cleaning of the references
… is sealed against dirt and swarf – withstands severe work environments
… has enhanced clamping force – turbo locking
… is suitable for automatic changing with System 3R’s automation program.

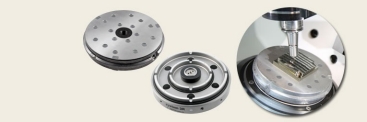

GPS 70 & 120
For milling, grinding, die-sinking EDM, presetting and measuring station. Suitable for the 5-sided machining of electrodes and workpieces.
- Dimensions: 100 x 100 x 70 mm
- Mounting (from the top): 70 x 70 mm, 4x M8 screws through holes (horizontal)
- Mounting (from the bottom): on GPS 240 pallet:
80 x 80 mm, 4x M8 screws threaded holes (horizontal),

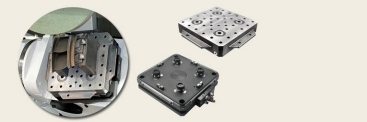

GPS 240
The machining zero point is defined by the centre of the chuck in the GPS 240 system. The chuck can be mounted on the machine table of any machine tool. The standardised hole pattern of the pallets allows clamping from below of workpieces, fixtures and accessories such as vices, three-jaw chucks and magnetic tables. This gives collision-free mounting, even with five-sided machining.
Download Brochure Get a Quote
Dynafix
Dynafix as the basic means of fixing to the machine table gives unsurpassed flexibility in terms of workpiece size. Using chuck adapters provides access to practically every reference system in System 3R's extensive produkt range. Rapid, precise pallet changing in sizes from Ø25 mm to 400 x 400 mm in the same basic mounting – manually or automatically.
- Repetition accuracy – within 0.002 mm
- Locking force – 60 000 N
- Fixed index positions 4x90°
- Required air pressure, pneumatic chuck – 6±1 bar

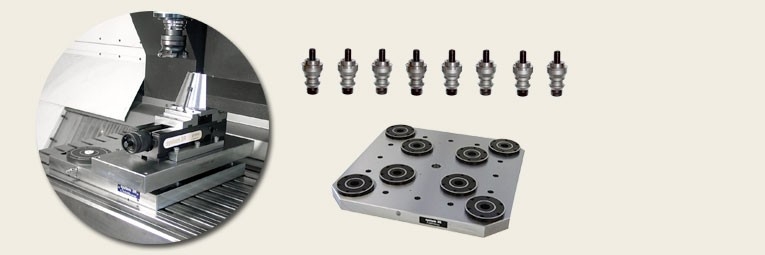

Delphin
The Delphin modular zero-point clamping system allows the machine table to be equipped individually with position-deter-mining chucks.
… Maximisation of machine runtimes by reduction in setting times by up to 90%
… Setting outside of the machine
… Standardisation of clamping systems
… Optimisation of production technology and product quality
… Unmanned production by automation
… Modernisation of existing machines by retrofitting with Delphin

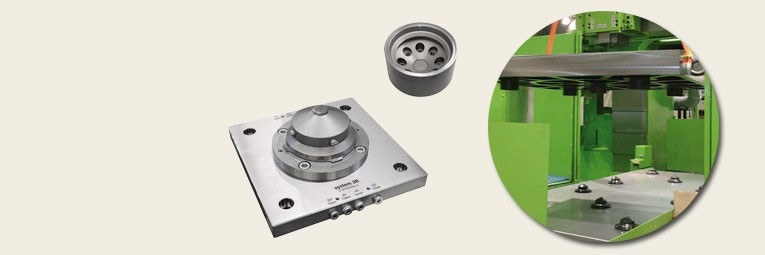

Delphin BIG
The largest member of the Delphin family ventures into new dimensions.The modular Delphin BIG zero-point clamping system allows the machine table to be equipped with position-determining chucks.
Delphin BIG allows the workpiece to be clamped outside the machine, thus offering major cost savings from reduced set-up times and enhanced flexibility. Delphin BIG is suitable for manual and automated applications.
