MacroCombi … gives extreme flexibility
… one chuck, two systems
… reduces setting-up times.
… ensures precision and quality
… is suitable for automatic changing with System 3R’s automation program.
… reduces setting-up times.
… ensures precision and quality.
… has automatic air-blast cleaning of the references in the pneumatic chucks.
… has higher locking force in the pneumatic chucks – turbo locking.
… Extremely high accuracy.
… High-precision machines are linked together in the production chain, without detracting from the extreme accuracy.
… Feedback to the machine for supplementary machining after inspection is possible. This feedback is only meaningful if the pallet system is at least as accurate as the measuring machine.

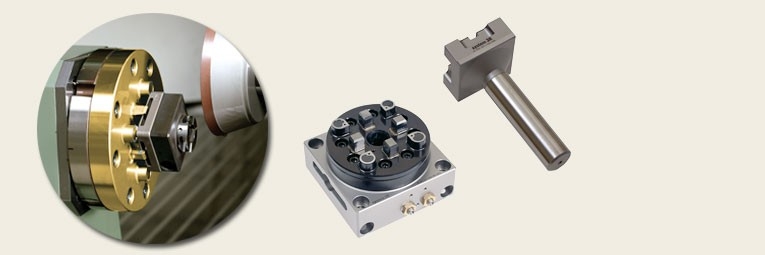

... MacroNano system is best described in two words as precise and quick!

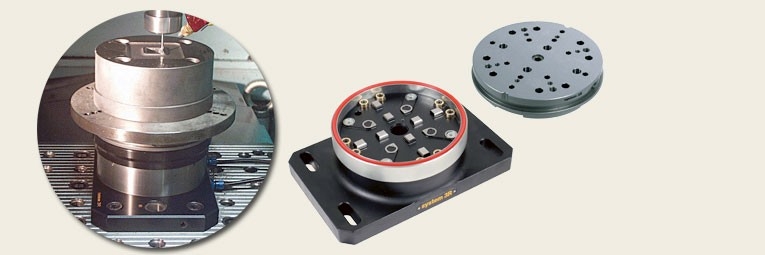

… allows mounting of both MacroMagnum and Macro palletts
… reduces setting-up times
… ensures precision and quality
… can handle high machining forces
… is suitable for automatic changing with System 3R’s automation program.
… reduces setting-up times
… ensures precision and quality
… has automatic air-blast cleaning of the references
… is sealed against dirt and swarf – withstands severe work environments
… has enhanced clamping force – turbo locking
The machining zero point is defined by the centre of the chuck in the GPS 240 system.
The standardised hole pattern of the pallets allows clamping from below of workpieces, fixtures and accessories such as vices, three-jaw chucks and magnetic tables.

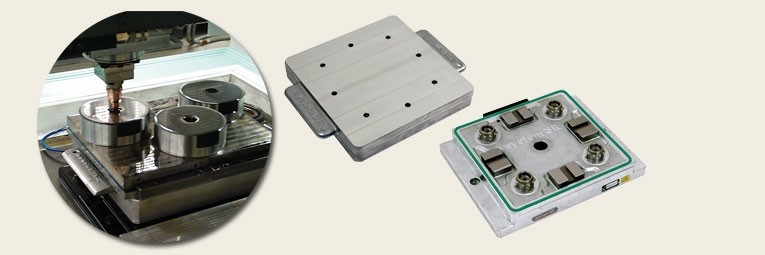

Dynafix permits machining with optimal cutting data, without sacrificing accuracy and quality. The easy-to-handle aluminium pallets have reference elements of high-alloy steel with directly measurable Z-references.
… reduces setting-up times
… is user-friendly

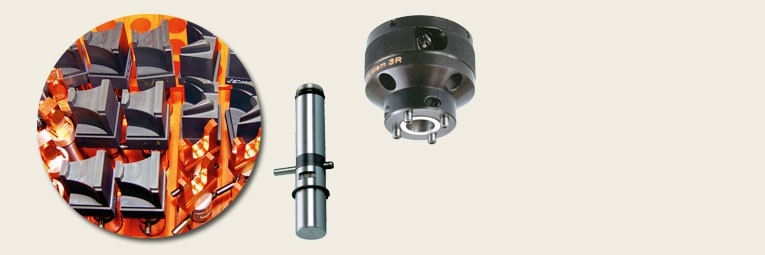

… gives access to a large part of System 3R's product range. An especially robust, uncomplicated and user-friendly system for larger and heavier electrodes and workpieces
.. reduces setting-up times
... gives rapid and precise mounting
... is suitable for automatic changing with System 3R's automation program.
... Clamping force – 4000 N
… gives a definite position with fixed references
… minimal investment, cutting production costs
… fast setup with just a few simple manual actions
… the expanding mandrel minimises wear in the reference holes.
… Maximisation of machine runtimes by reduction in setting times by up to 90%
… Setting outside of the machine
… Optimisation of production technology and product quality

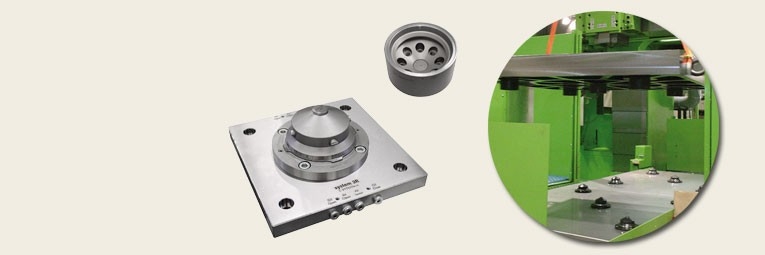

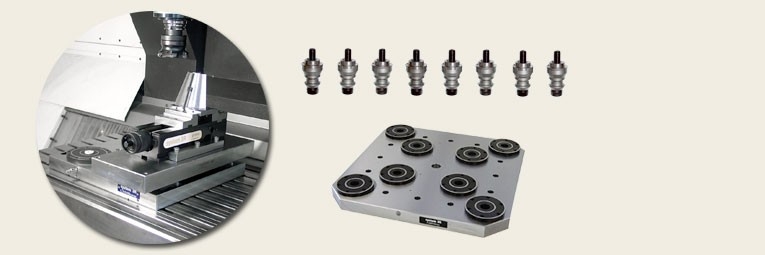

The largest member of the Delphin family ventures into new dimensions. The modular Delphin BIG zero-point clamping system allows the machine table to be equipped with position-determining chucks.
